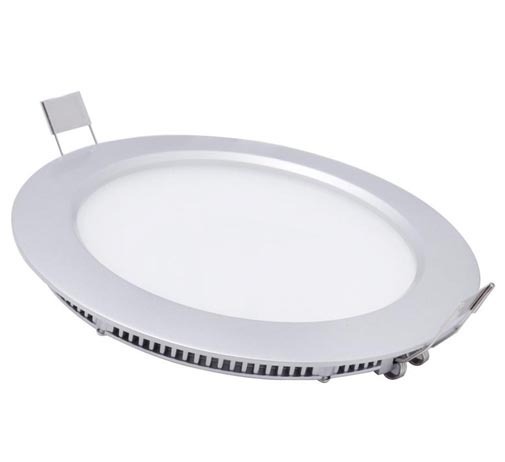

Round LED Panel Lights 18W

Item No.: 020
INQUIRY
Description

Round LED Panel Light Specifications:

Model
Specification

Size(mm)

Voltage(V)

output

power(w)

Lumen(lm)

color tempt(k)

CRI(Ra)

3W85

Ф85*13*65MM

Ac85-265V

3W

240lm

2700-7000k

80/75

4W105

Ф105*13*90MM

Ac85-265V

4w

320lm

2700-7000k

80/75

9W145

Ф145*13*130MM

Ac85-265V

9w

720lm

2700-7000k

80/75

12W180

Ф180*13*160MM

Ac85-265V

12w

960lm

2700-7000k

80/75

15W200

Ф200*13*180MM

Ac85-265V

15w

1200lm

2700-7000k

80/75

18W225

  Ф220*13*200MM

Ac85-265V

18w

1440lm

2700-7000k

80/75

20W240

Ф240*13*220MM

Ac85-265V

20w

1600ln

2700-7000k

80/75

24W300

Ф300*13*280MM

Ac85-265V

24w

1920lm

2700-7000k

80/75

Round led panel light Product Description

  • 1. LED panel is a kind of advanced indoor light, which inherits the characteristics of simplicity and classics of Europe style. It is gaining the favor of customers for its super thin profile and clear bright light effect. LED panel creates a strong sense of depth and space when applied in indoor places such as meeting room, VIP reception room, and hotel.

  • 2. The frame is made of 6063 aluminum alloy with anodic oxidation treatment, which is very good in heat dissipation. Light source is 3535 LED, which can create a flat lighting effect when its light pass through the light guide plate.

  • 3. LED panel is more energy saving and environment protecting with longer life than traditional light products. Its light is well-proportioned, soft, comfortable and bright.

Round LED Panel Light Advantage:

  • Ultra slim design

  • High brightness 2835 chip,Up to 26 lumen/chip

  • High efficiency isolated driver, Constant Current Control IC for Transmission

  • Over 90% light transmission makes the light softly and brightly

  • Low maintenance cost. Life span: >50,000 hours

  • Instant on no flicker or hum

  • Emit NO UV or IR radiation, environmentally friendly

  • Universal input voltages available for North America, Latin America, Europe, Asia

  • Up to 5 years warranty base on different price and products

  • CE&ROHS approved

  • Power:3W/4W/6W/9W/12W/15W/18W/20W/24W

  • Color temperature:2800-7000

  • Lead time,1000-10000 within 7days,10,000-30,000 within 15days

  • High efficiency constant current drive system, with heat protection system

  • Over 90% light transmission makes the light softly and brightly

  • Low maintenance cost. Life span: >50,000 hours

  • Instant on no flicker or hum

  • Emit NO UV or IR radiation, environmentally friendly

  • Universal input voltages available for North America, Latin America, Europe, Asia

  • CE, RoHS and FCC certifications
